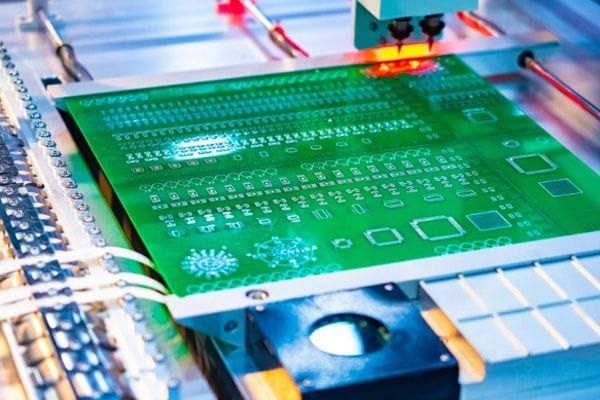

Multi-Layer PCB
Multi-layer PCBs support 4-40 layer configurations for complex circuit designs. High-density interconnection with precise impedance control, ideal for communication equipment, servers, and medical devices.
Specifications
Layers4-40 layers
Board Thickness0.4mm - 6.0mm
Min Line W/S3mil/3mil
Min Drill Size0.1mm
Impedance Control±8%
MaterialFR-4/High-Freq
Key Features
4-40 layers available
Precise impedance control
High-density interconnection
Blind/buried via technology
High Tg materials
Excellent signal integrity
Applications
Communication base stationsServer motherboardsNetwork equipmentMedical devicesAerospaceConsumer electronics
Ready to Order Multi-Layer PCB?
Upload your Gerber file and get an instant quote. Fast turnaround guaranteed.
